PRODUCT DESCRIPTION

Projecta 6/12/24V Automatic & Manual 21 AMP 2 Stage Battery Charger - HDBC35

Designed for the most demanding environments such as heavy-duty transport and agriculture. Delivers ample power, sturdy construction, and various charging options.

Features:

Multi-Voltage OperationMulti-Voltage Operation
Adjustable to suit 6, 12, or 24 Volt operation.

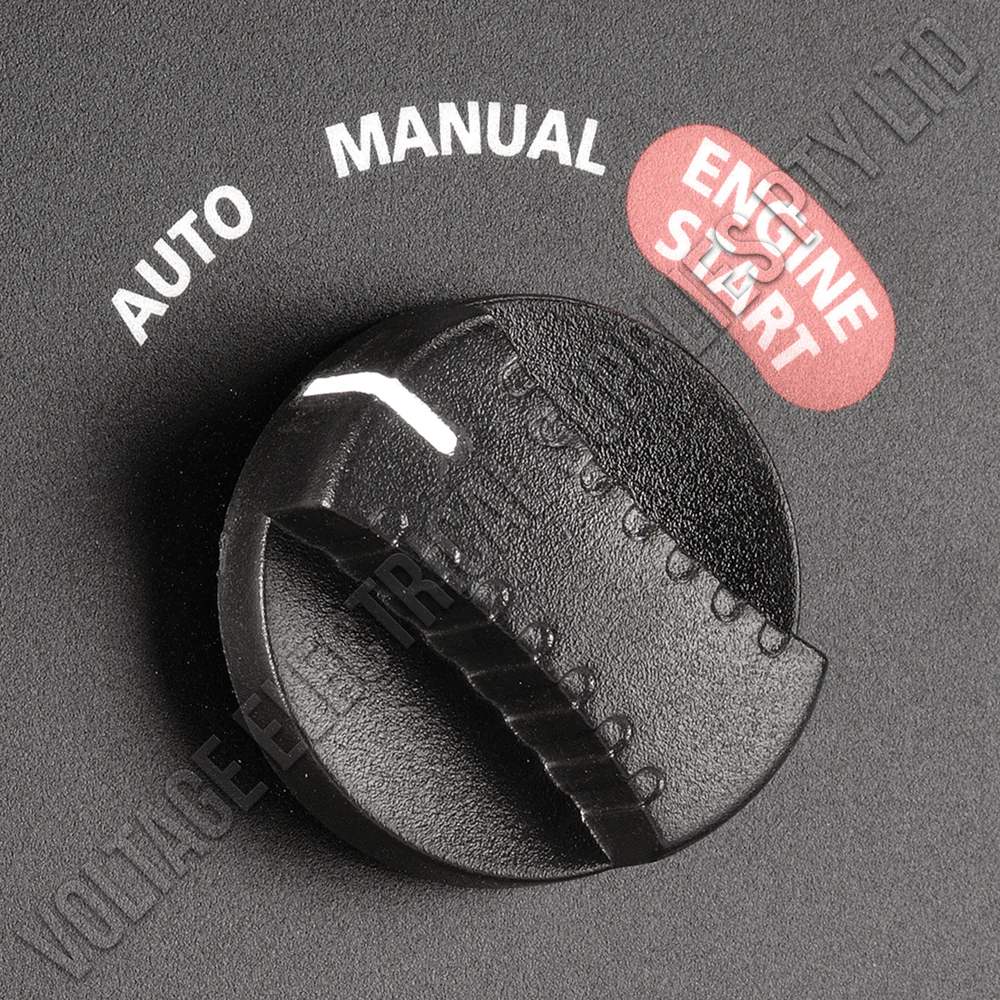

Automatic Or Manual
Charging options keep the operator in control.

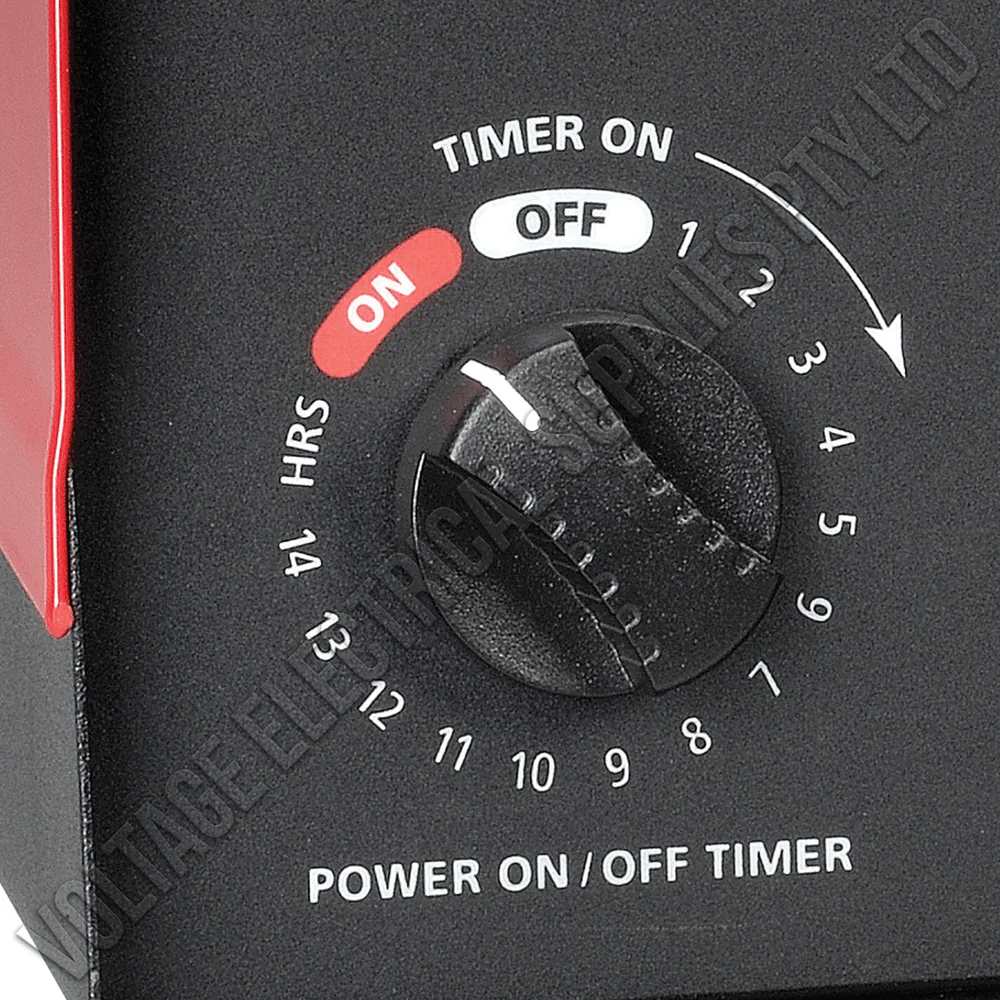

0–14 Hour Timer
Automatically turns the charger off at the set time.

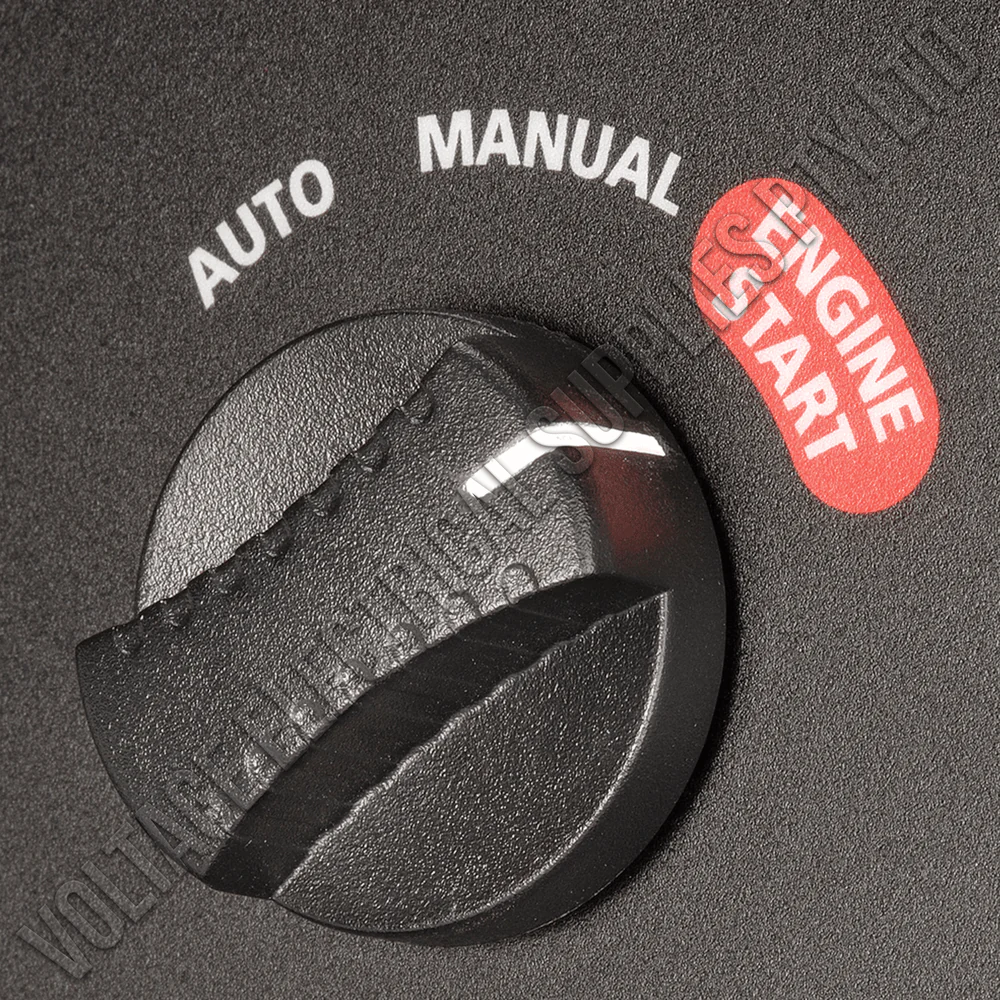

Engine Start Function
Starts vehicle with a flat battery after a controlled 5-minute charge (subject to battery condition).

L.E.D Display
Displays Volt and Amp readings for accurate charge status.

Specification:

PART NO		HDBC35
TYPE		2 Stage Automatic & Manual
INPUT		240V, 50Hz, 636W
OUTPUT		12.0A at 6.3V 21.0A at 12.0V 13.5A at 26.0V
ENGINE START		5 cycles – 5 min on, 5 mins off 6V: 85A at 3.6V 12V: 85A at 7.2V 24V: 45A at 14.4V
CHARGE CONTROL		Cut out: Cut in: Start: 6V 7.1V 6.7V 0.0V 12V 14.2V 13.4V 0.0V 24V 28.4V 26.8V 0.0V
APPROVALS		Electrical Safety, EMC



L.E.D. Charge Indication

RED LIGHT ON FLASHING		Overload
SECOND RED LIGHT ON		Power on
SECOND RED LIGHT FLASHING		Reverse connection
AMBER LIGHT ON		Charging
GREENLIGHT ON		Fully charged
L.E.D SCREEN		Voltage / Current



Battery Charge Times

HDBC35	VOLTAGE	BATTERY SIZE	CHARGE TIME
AUTOMOTIVE	6, 12, 24V	550–2000CCA	4–10 hrs
MARINE	6, 12, 24V	700–2500MCA	5–12 hrs
