24V AUTOMATIC 8A 7 STAGE BATTERY CHARGER IC800-24

A highly advanced charger for all your 24V battery requirements. Capable of being set to perfectly suit the specific battery chemistry type as well as offering an adjustable-charge rate feature to match a large range of battery sizes.

Features:

• Multi-Chemistry - Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM, or Gel.
• Adjustable Output - Adjustable for different battery sizes & include 1.8m temperature compensation probe for precise charging.
• Power Supply Mode - Retains vehicle computer settings when changing a battery or can run 24V appliances.

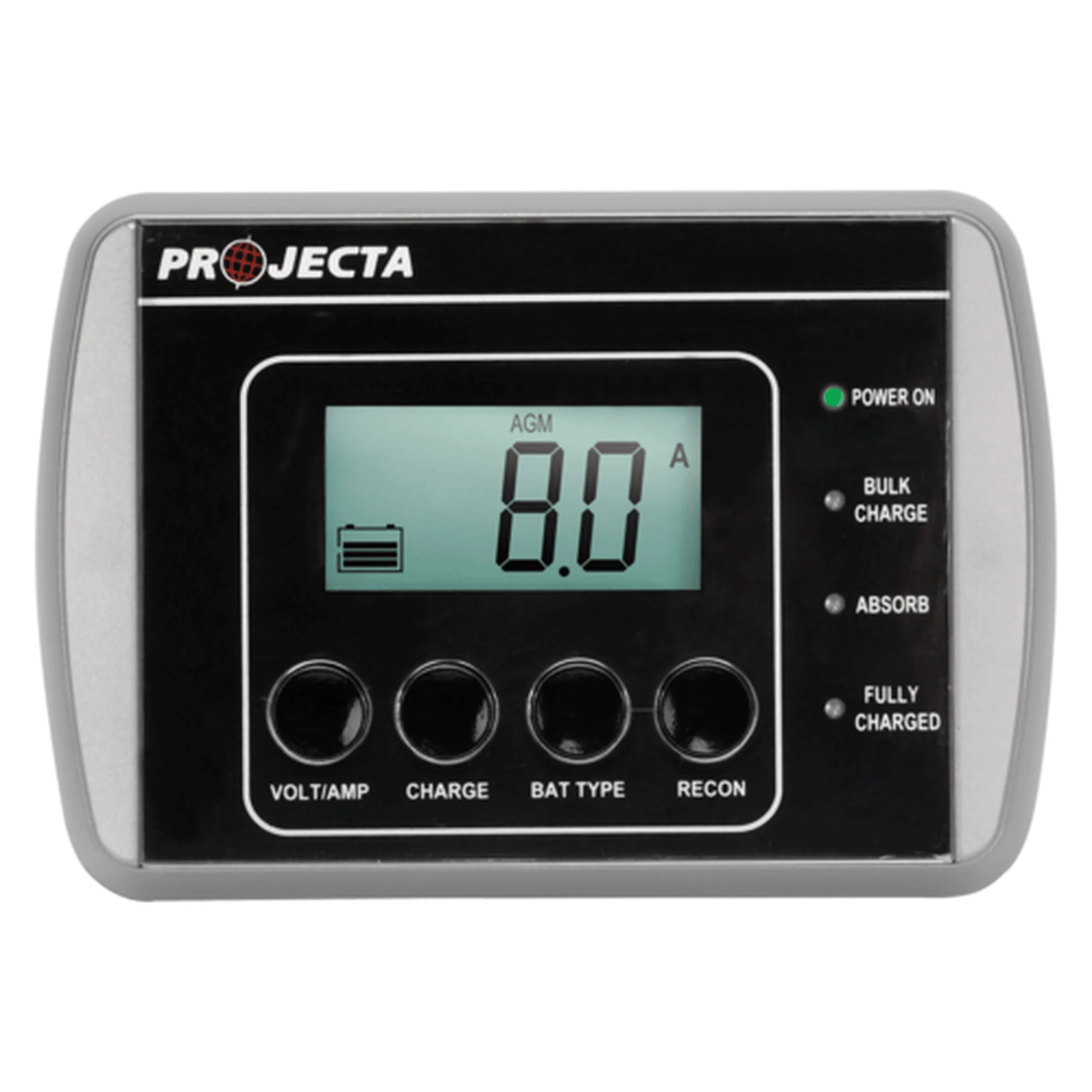

• Wired Remote Control - Allows charger to be mounted out of sight yet retain total control, includes 4.5m lead.
• Shock and Dust Proof - Durable construction and safer charging with spark-free and polarity protected connection.

Specification:

PART NO		IC800-24
TYPE		7 Stage Automatic
INPUT		240VAC, 50Hz, 480W
OUTPUT		24V
OUTPUT CURRENT		2, 4, 6, 8A
MINIMUM START VOLTAGE		4.5V
BACK DRAIN		Charger 3mA, with remote 4mA
APPROVALS		Electrical Safety, EMC
CHARGE VOLTAGE		28.2V (GEL), 28.8V (AGM), 29.4V (WET), 32.0V (CALCIUM)



L.E.D. Charge Indication

SCREEN		Backlit LCD screen
RED LIGHT ON		Power on
BLUE LIGHT ON		Charging
GREENLIGHT ON		Fully charged and maintaining, no need to turn the charger off



Battery Charge Times

IC800-24	VOLTAGE	BATTERY SIZE	CHARGE TIME
AUTOMOTIVE	24V	80–1000CCA	7–24 hrs
MARINE	24V	110–1300MCA	7–24 hrs
DEEP CYCLE	24V	14–160Ah	7–24 hrs
