PRODUCT DETAILS

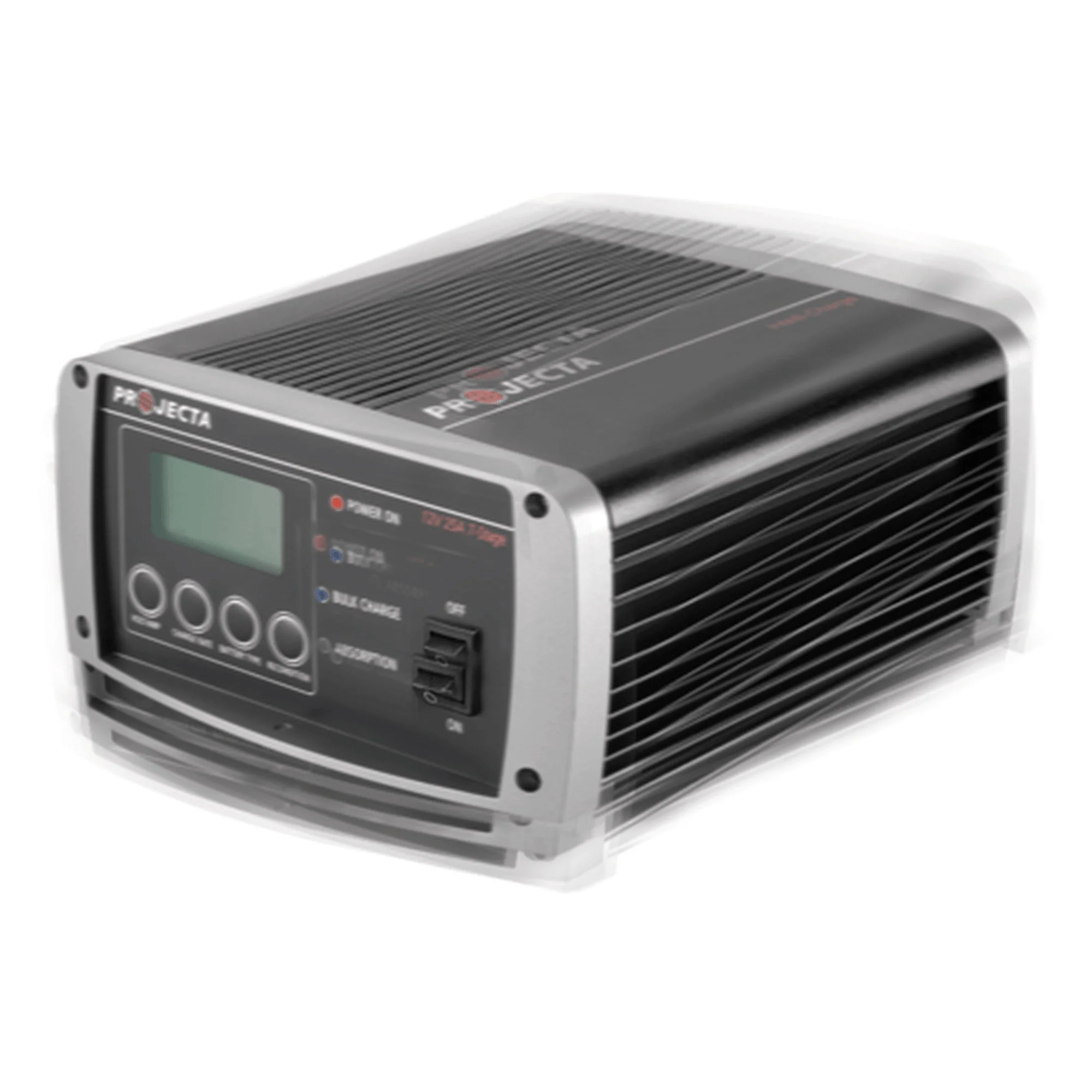

12V AUTOMATIC 35A 7 STAGE BATTERY CHARGER IC3500

With world-class 7 stage technology this advanced automatic charger is ideal for the high power demands of caravans and motor homes delivering an extremely comprehensive and accurate charge that gives your batteries longer life and better performance.

Features:

Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM, or Gel.

Adjustable Output
Adjustable for different battery sizes & include 1.8m temperature compensation probe for precise charging.

Power Supply Mode
Retains vehicle computer settings when changing a battery or can run 12V appliances.

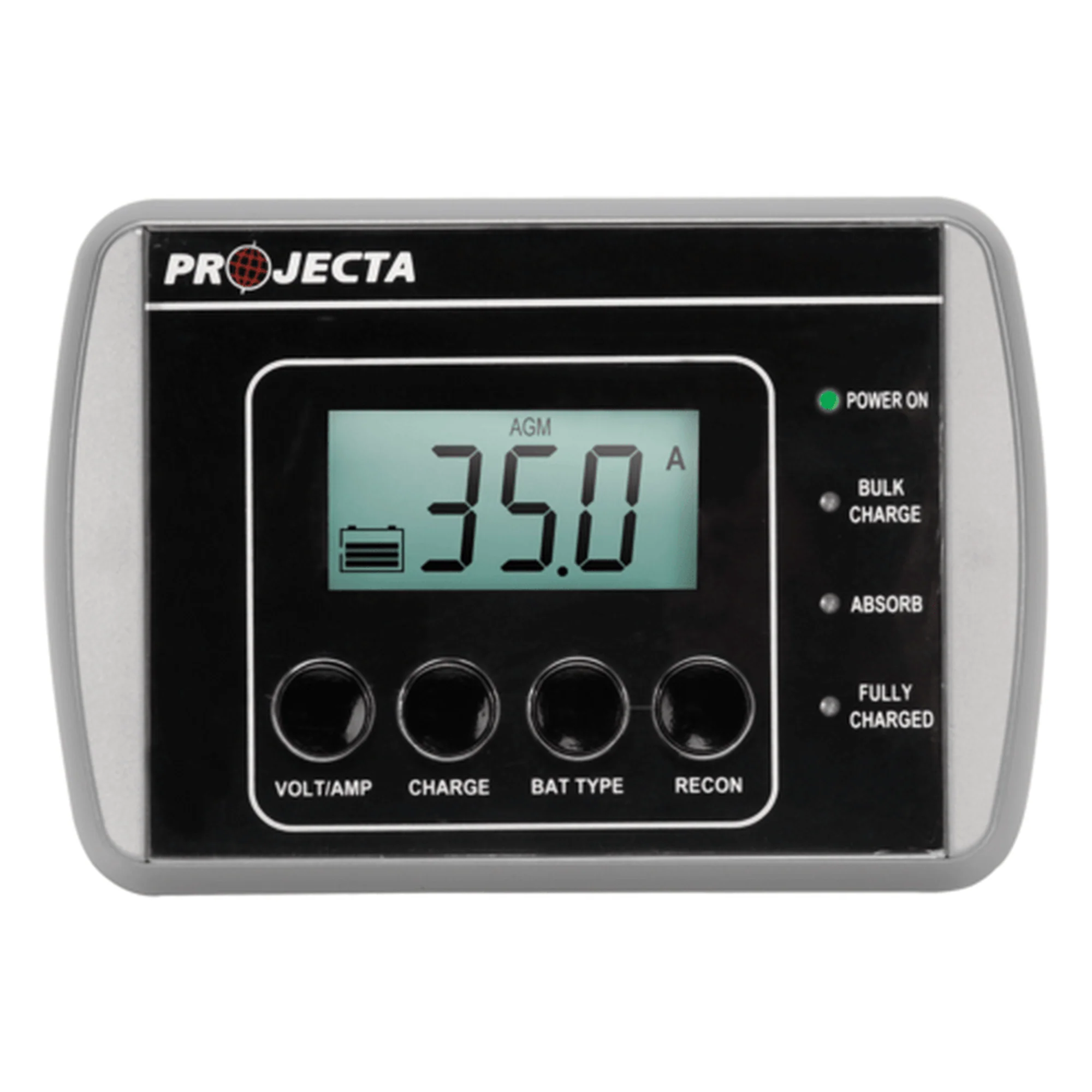

Wired Remote Control
Allows charger to be mounted out of sight yet retain total control, includes 4.5m lead.

Shock & Dust Proof
Durable construction and safer charging with spark-free and polarity protected connection.

Specification:

PART NO		IC3500
TYPE		7 Stage Automatic
INPUT		240VAC, 50Hz, 570W
OUTPUT		12V
OUTPUT CURRENT		2, 8, 16, 35A
MINIMUM START VOLTAGE		2.5V
BACK DRAIN		Charger 1mA, with remote 2mA
APPROVALS		Electrical Safety, EMC
CHARGE VOLTAGE		14.1V (GEL), 14.4V (AGM), 14.7V (WET), 16.0V (CALCIUM)



L.E.D. Charge Indication

SCREEN		Backlit LCD screen
RED LIGHT ON		Power on
BLUE LIGHT ON		Charging
GREENLIGHT ON		Fully charged and maintaining, no need to turn the charger off

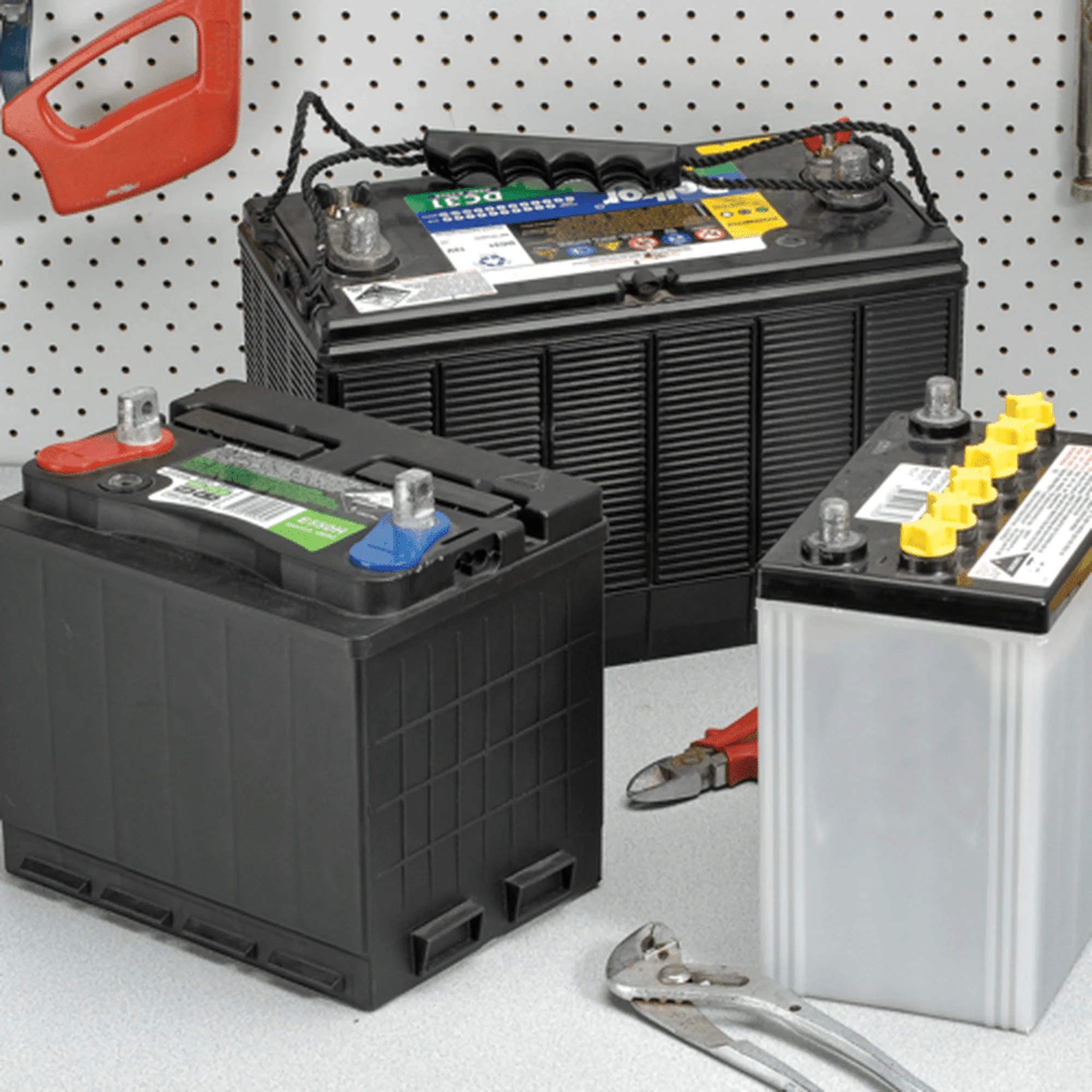

Battery Charge Times

IC3500	VOLTAGE	BATTERY SIZE	CHARGE TIME
AUTOMOTIVE	12V	80–4200CCA	7–24 hrs
MARINE	12V	110–5800MCA	7–24 hrs
DEEP CYCLE	12V	14–700Ah	7–24 hrs
