PRODUCT DETAILS

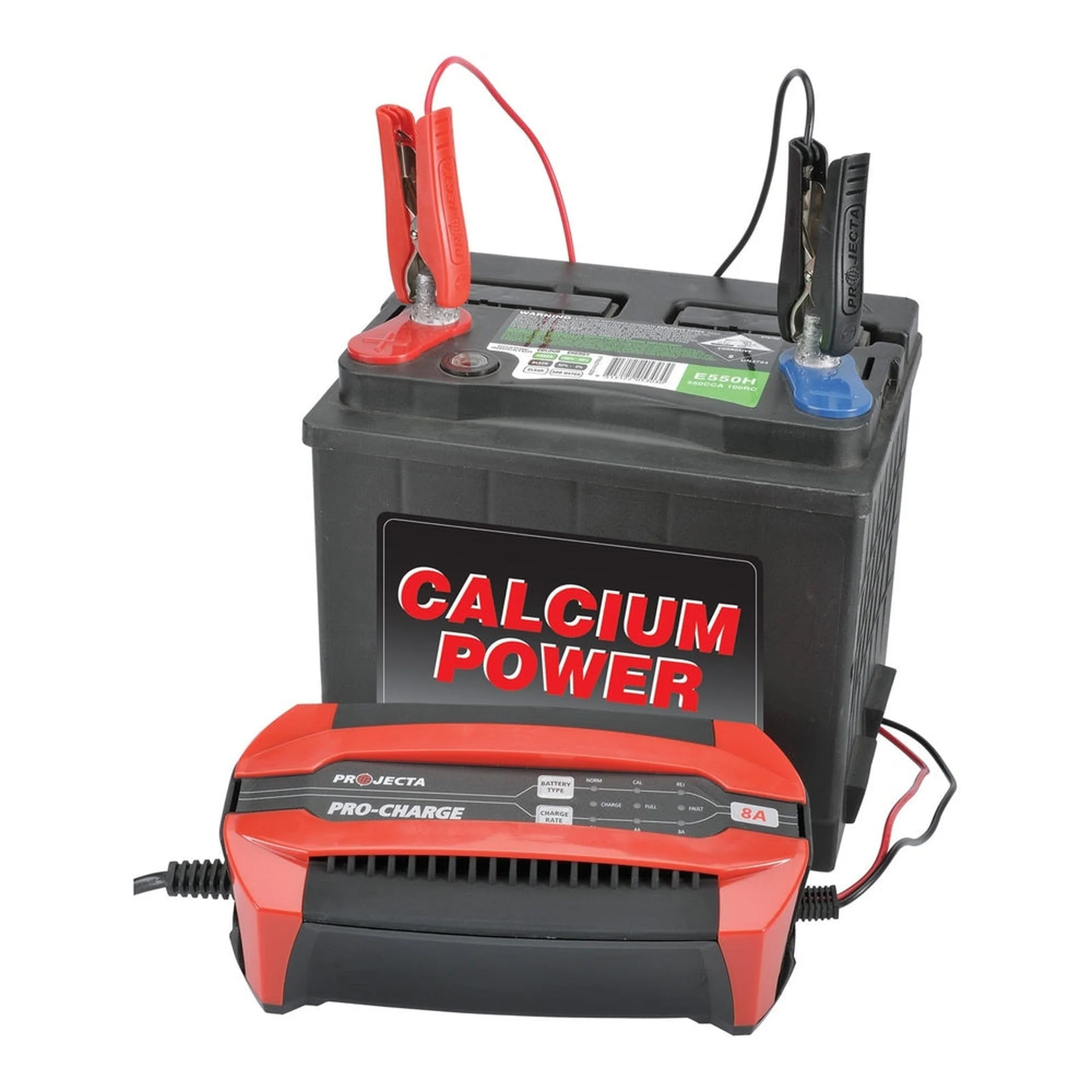

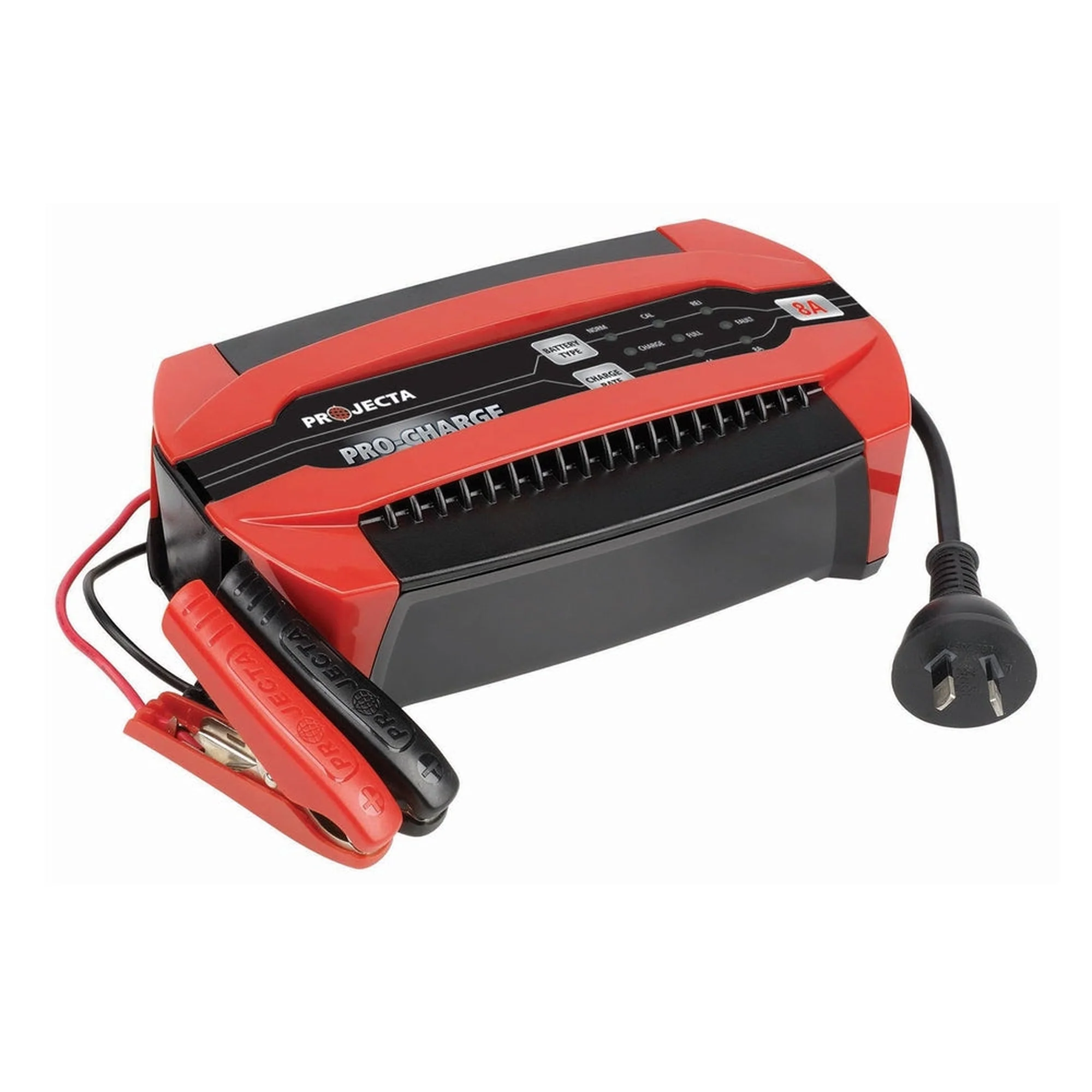

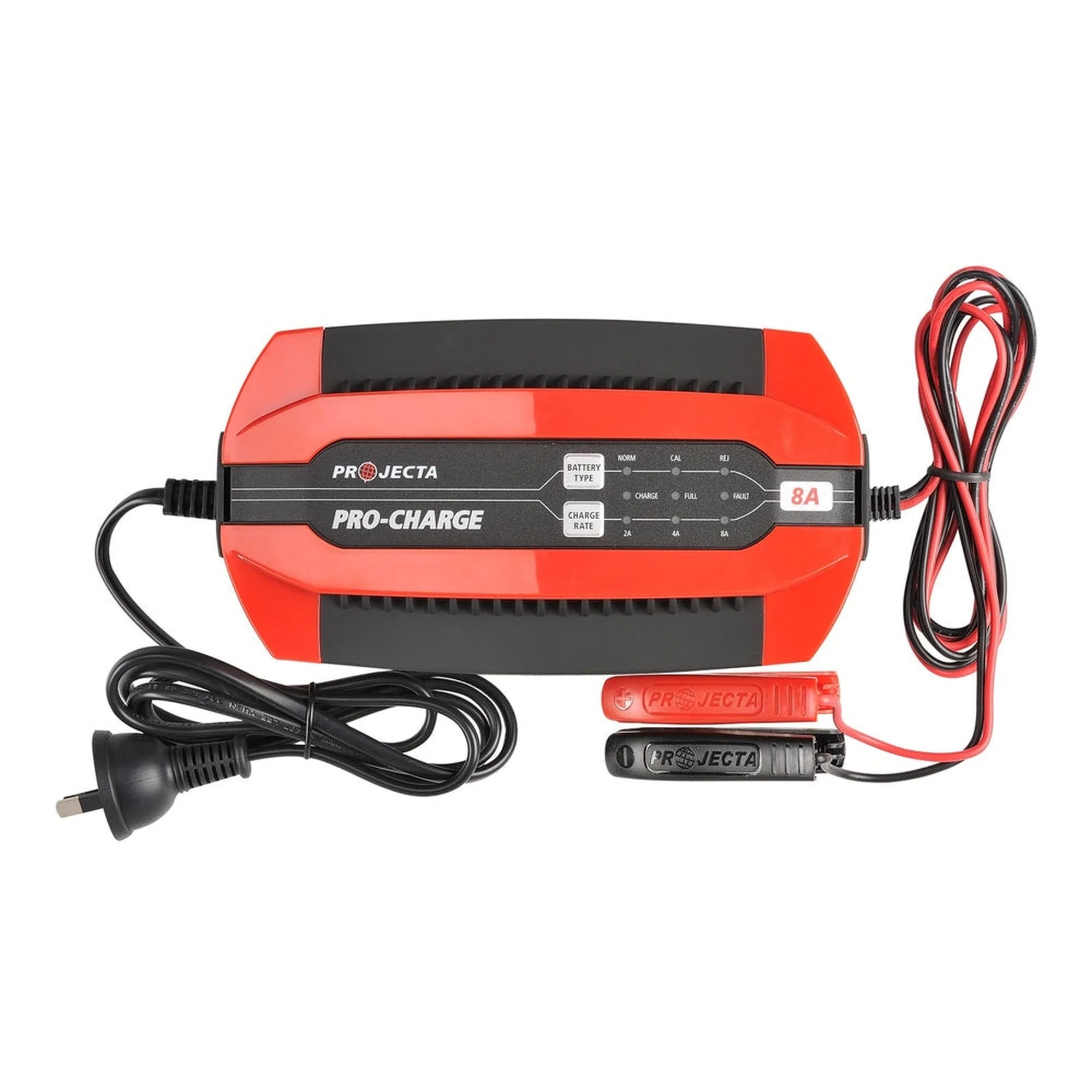

12V AUTOMATIC 8A 6 STAGE BATTERY CHARGER PC800

The perfect all-rounder for small to large batteries found in recreational vehicles, passenger vehicles, and 4WDs.

Features:

Adjustable Output
Suitable for a wide range of different size batteries.

Calcium Mode
Adjusts the charging profile to suit calcium batteries.

Rejuvenation Mode
Revitalises tired batteries, increasing battery life, and performance (subject to battery condition).

Side Mounting Wings
Optional mounting wings for permanent installation.

Safer Charging

Spark free and polarity protected.

Specification:

PART NO		PC800
TYPE		6 Stage Battery Charger
INPUT		240VAC, 50Hz, 240W
OUTPUT		12V
OUTPUT CURRENT		2, 4, 8A
MINIMUM START VOLTAGE		3.0V
BACK DRAIN		1mA
APPROVALS		Electrical Safety, EMC



L.E.D. Charge Indication

BLUE LIGHT ON		Bulk and absorption charging
GREEN LIGHT ON		Fully charged and maintaining, no need to turn off
AMBER LIGHT ON		Rejuvenation process occurring
RED LIGHT ON		Indicates faulty battery



Battery Charge Times

PC800	VOLTAGE	BATTERY SIZE	CHARGE TIME
AUTOMOTIVE	12V	80–1000CCA	7–24 hrs
MARINE	12V	110–1300MCA	7–24 hrs
DEEP CYCLE	12V	14–160Ah	7–24 hrs
