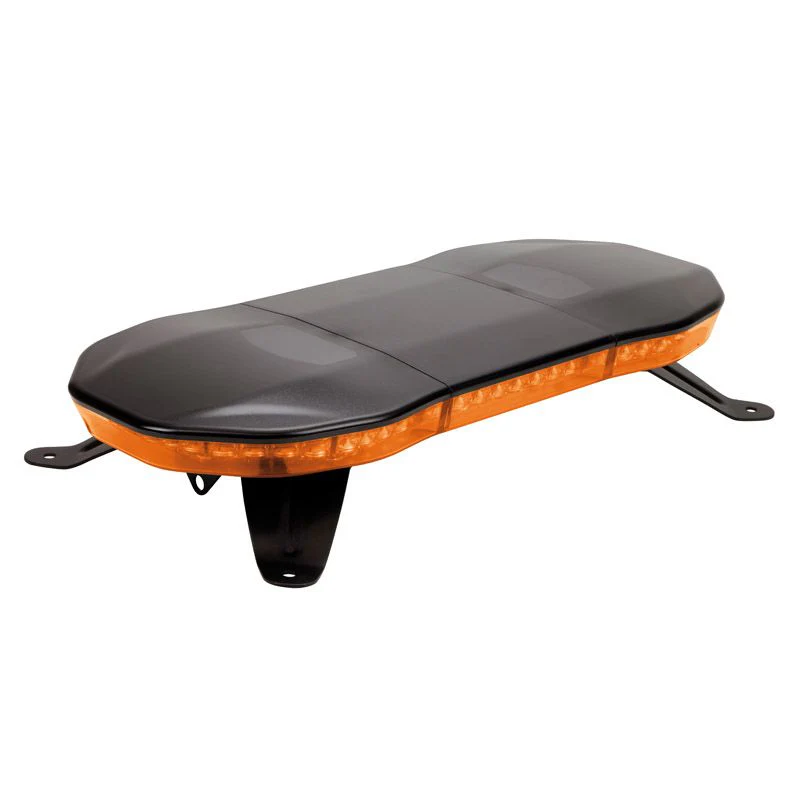

Maximize your vehicle’s safety and site presence with the Roadvision 34” Revolver Series Amber LED Light Bar. Specifically engineered for the rigorous demands of the Australian environment, this low-profile warning light ensures your machinery, ute, or heavy-duty truck remains highly visible in hazardous or high-traffic conditions. The "Built Tough" design pairs an impact-resistant polycarbonate lens with a heavy-duty housing, delivering a professional-grade beacon that meets and exceeds both Australian and international safety regulations, including SAE Class 1 and ECE R65.

Powered by high-intensity SMD LEDs, this 34-inch unit offers 360-degree illumination across 10 distinct flash patterns. With a fully sealed, IP67 waterproof and vibration-proof construction, coupled with a 100,000-hour solid-state lifespan, the Revolver RLB500 Series is the ultimate maintenance-free, high-performance lighting solution.

Roadvision 34" Features & Benefits

• Maximum 360° Visibility: High-intensity SMD LEDs deliver an ultra-bright amber warning signal, ensuring your vehicle is clearly seen from all angles.
• 10 Selectable Flash Patterns: Includes single, triple, and combination flash functions, allowing you to tailor the light to specific site requirements or emergency situations.
• Extreme Durability: Constructed with a tough polycarbonate lens and housing, designed to withstand heavy impacts, stone chips, and severe weather.
• Weather & Dust Proof: IP67 rated, meaning it is completely sealed against fine outback dust and can withstand heavy rain and high-pressure washing.
• Vibration Resistant: Solid-state technology with no moving parts ensures the light bar easily survives the punishing vibrations of corrugated dirt roads.
• Multi-Volt Versatility: 10-30V DC compatibility allows for seamless installation on 12V utes and 4WDs, as well as 24V commercial trucks and heavy machinery.
• Ready to Install: Supplied with a secure 4-leg fixed mount and a convenient 2.5m cable with a cigarette lighter plug for immediate use.

Roadvision 34" Technical Specifications

Feature	Specification
Series	Revolver RLB500 Series
Length	34 Inches (approx. 860mm)
Input Voltage	10-30V DC (Multi-volt)
Power Output	Up to 111W
Flash Patterns	10 Functions (Single, Triple, Combo)
IP Rating	IP67 (Water & Dustproof)
Dimensions	217mm (W) x 90mm (H)
LED Lifespan	100,000 Hours
Mounting	4-Leg Fixed Mount
Connection	2.5m Cable with Cigarette Plug
Approvals	EMC, ECE R65/R10, SAE J845 Class 1



Frequently Asked Questions

Q: Will this light bar work on my 24V heavy-duty truck?
A: Yes, the Revolver Series features a multi-volt 10-30V DC input, making it perfectly compatible with both 12V passenger vehicles and 24V industrial trucks.

Q: Does this light bar need to be hardwired by an auto electrician?
A: Not necessarily. It comes supplied with a 2.5m cable and a cigarette lighter plug for quick and easy plug-and-play operation. However, the plug can be removed for hardwiring if a permanent installation is preferred.

Q: Can this handle the vibrations of an excavator or a grader?
A: Absolutely. The light bar utilizes solid-state LED technology and is completely vibration-proof, making it ideal for heavy earthmoving machinery.

Q: How do I change the flash patterns?
A: The flash patterns can easily be cycled through to find the ideal single, triple, or combination flash required for your specific work site.

Q: Is the unit completely waterproof?
A: Yes, it boasts an IP67 rating, meaning it is 100% protected against dust ingress and can withstand temporary immersion in water, ensuring heavy rain is no issue.

Q: Are these approved for mine site use?
A: Yes, the light bar meets strict EMC, ECE R65/R10, and SAE J845 Class 1 approvals, satisfying the safety and visibility requirements for the vast majority of Australian work and mine sites.
