iTechworld 150W Hard Frame Solar Panel 22V/27V
PRODUCT DETAILS
iTechworld 150W Hard Frame Solar Panel 22V/27V
Our all-new 22V 150W Hard Frame Solar Panels have proudly been designed and developed in Australia. Utilising Shingle Solar Cells, you can expect higher power per square meter, less energy loss due to shading and overall improved aesthetics.

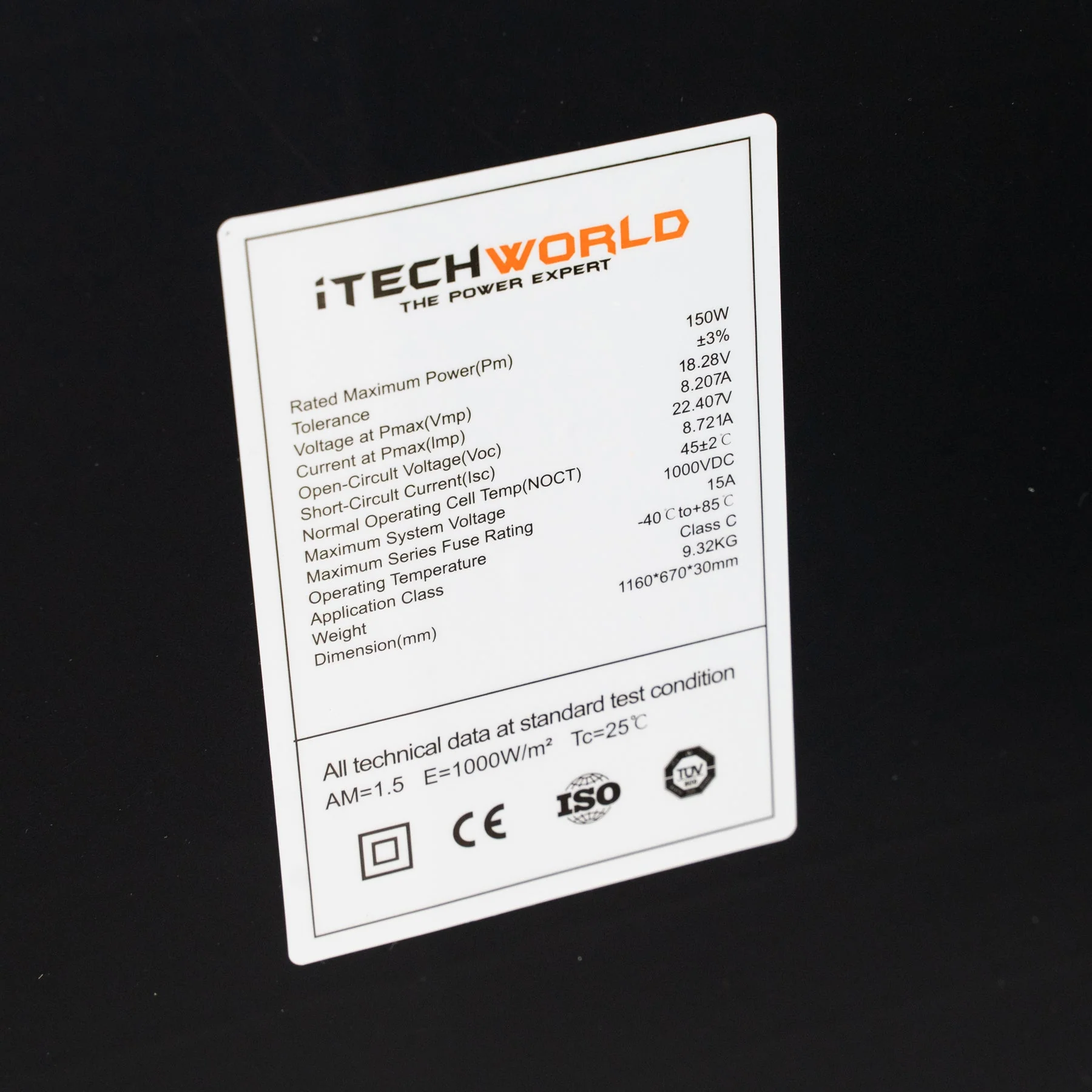

SPECIFICATIONS
|
Rated Maximum Power(Pm) |
150W |
|
Tolerance |
‡3% |
|
Voltage at Pmax(Vmp) |
18.28V |
|
Current at Pmax(Imp) |
8.207A |
|
Open-Circult Voltage(Voc) |
22.407V |
|
Short-Circult Current(|sc) |
8.721A |
|
Normal Operating Cell Temp(NOCT) |
45+2°C |
|
Maximum System Voltage |
1000VDC |
|
Maximum Series Fuse Rating |
15A |
|
Operating Temperature |
-40 Cto+85 C |
|
Weight |
9.32KG |
|
Dimension(mm) |
1160x670x30mm |
