PRODUCT DETAILS

12V 100A VOLTAGE SENSITIVE RELAY VSR100

The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.

Features:

L.E.D indicator

• L.E.D illuminates when VSR is activated.

Sealed electronics

• Prevents dust and water ingress (IP66).

Surge protection

• Built-in protection guards vehicle against voltage spikes.

Manual override

• Bypasses automatic settings allowing the relay to engage below-set voltages.

Silvertip contacts

• Provide exceptional current transfer.

Specifications:

PART NO	VSR100
VOLTAGE	12V
CHARGING CURRENT	100A Continuous, 200A Peak
CUT-IN VOLTAGE	13.4V
CUT-OUT VOLTAGE	12.8V
CUT-OUT DELAY	8 seconds
MINIMUM OPERATING VOLTAGE	10V
CHARGE TYPE	Parallel
CONTROL	MCU

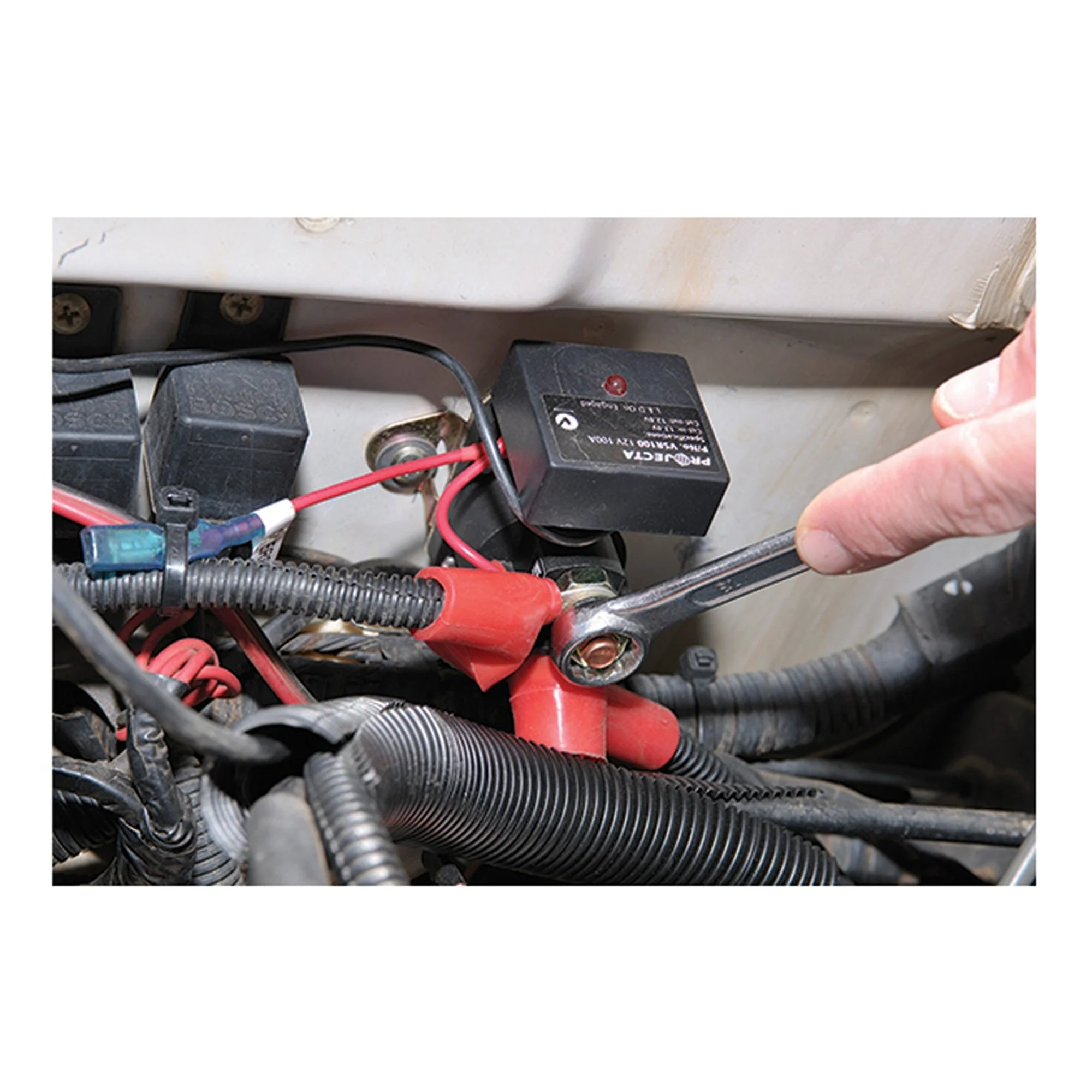

MOUNTING	Surface/firewall
CURRENT DRAW	Charging 550mA (standby 10mA)
SURGE PROTECTION	Built-in
INGRESS PROTECTION	IP66
OVERRIDE	Requires min. 10V
RECOMMENDED FUSE	150A
MINIMUM CABLE SIZE	14mm2 (6 B&S)
APPROVALS	EMC
