PRODUCT DETAILS

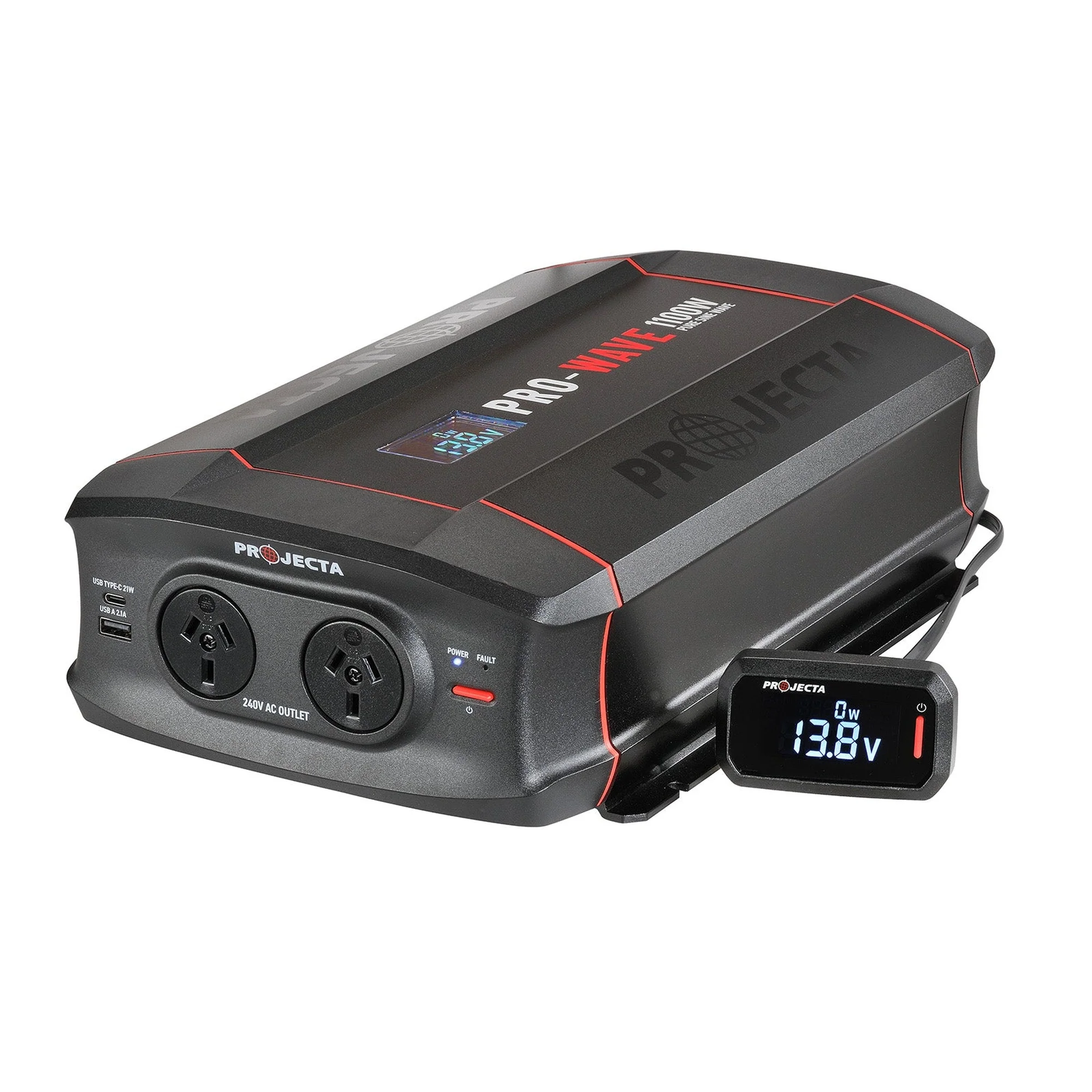

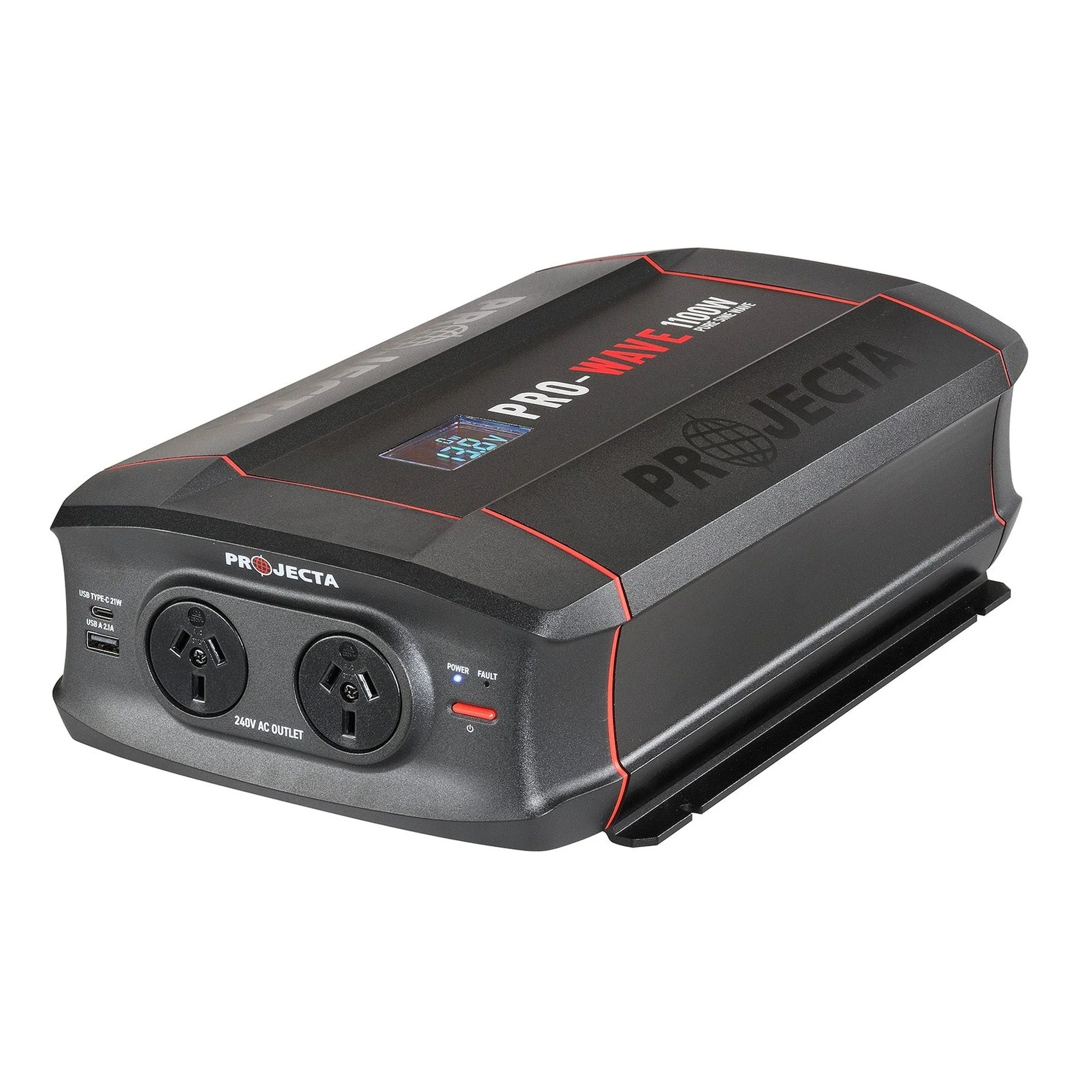

PROJECTA PW1100 - 1100W 12V PURE SINE WAVE INVERTER

*Free Mega Fuse and Mega Fuse Holder with every Projecta inverter purchase while stocks last!

This 1100W inverter is loaded with features found on larger models and is suitable for powering lightweight household appliances. Featuring greater starting power than modified sine wave inverters allowing it to start more favourite appliances.

Features:

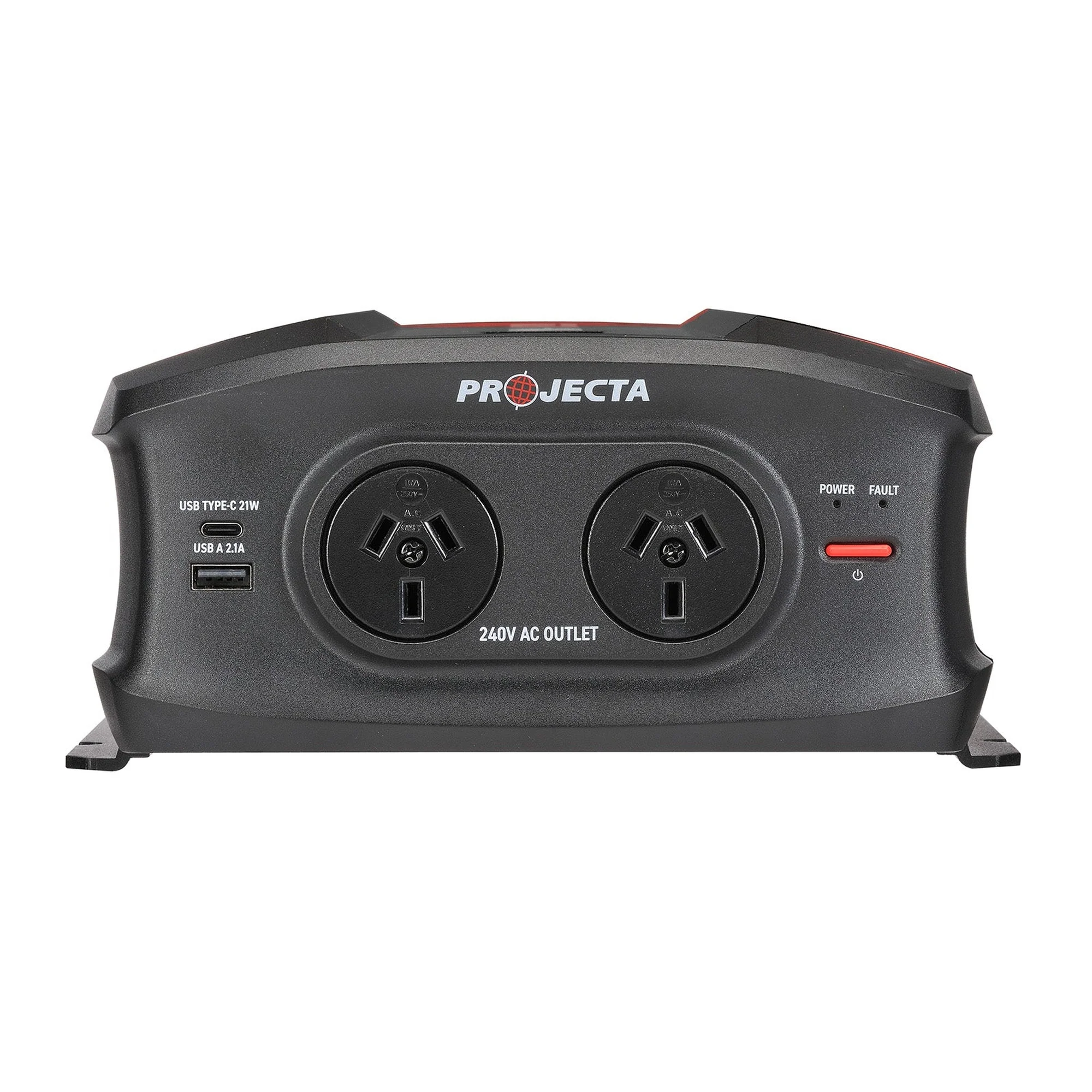

• Approved output socket - AS/NZ approved 240V sockets. Inverter designed to Australian standard AS4763
• Digital display - LED display provides information on battery voltage, power usage and load capacity
• USB output socket - 2.1A USB-A and 21W USB-C ports for charging most mobiles and portable devices

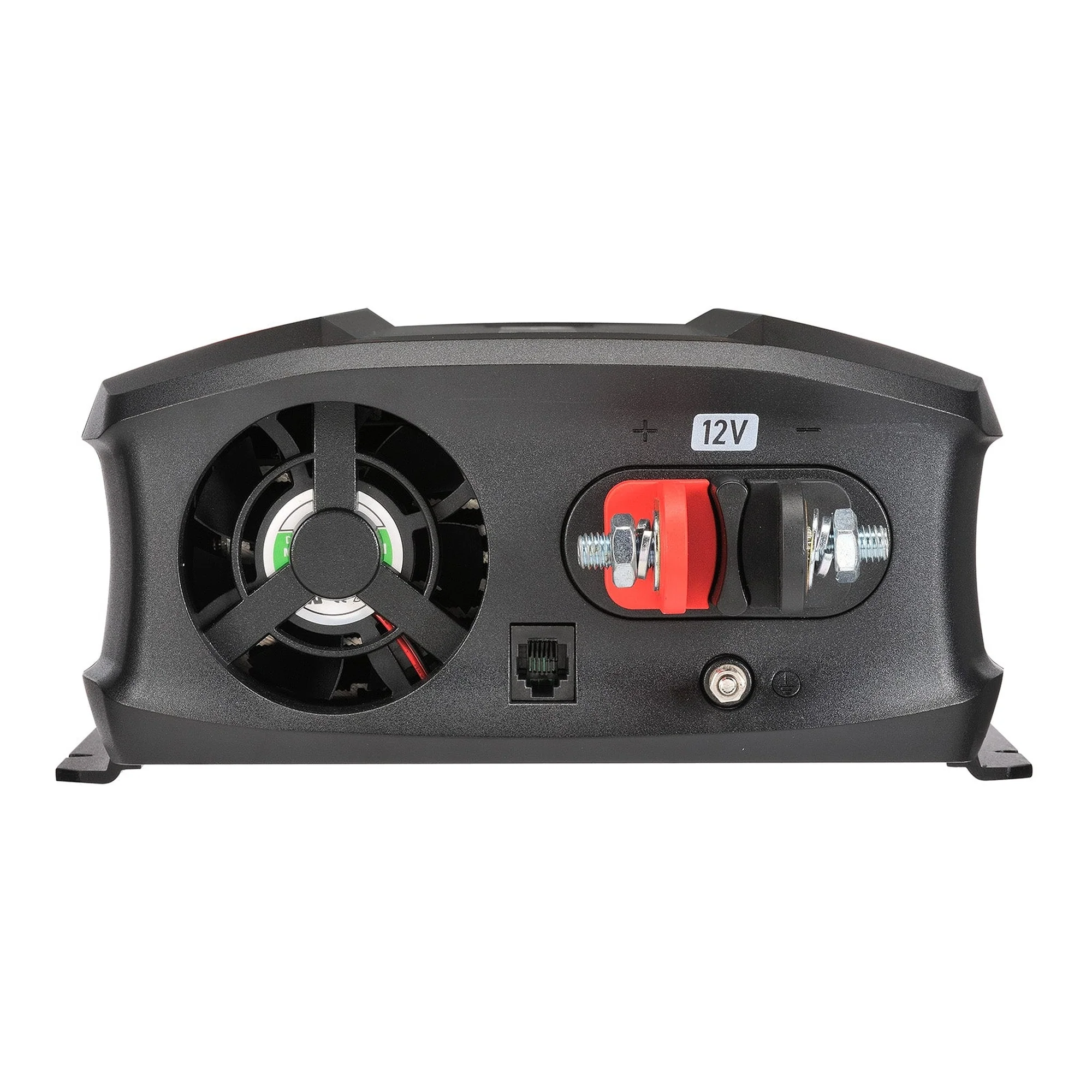

• Wiring kit - Battery lugs with 1100mm 16mm2 battery cable
• Remote control - LCD display and remote control unit provides information on battery voltage and power usage

Specification:

PART NO	PW1100
INPUT	12V DC, 108A Max
NO LOAD CURRENT DRAW	<1.0A
OUTPUT	240VAC, 50Hz (Pure Sine Wave)
OUTPUT POWER	1100W Continuous 1320W 120% surge ≤10 minutes 2200W 200% surge ≤1 second
INVERTER CLASSIFICATION	Equipotential Bonded (EPB)
EFFICIENCY	85%
LOW BATTERY ALARM	10.5V (±0.3V)
SHUTDOWN	9.9V (±0.3V)
COOLING FAN	Automatic temperature & Load controlled
THERMAL SHUTDOWN	65° (±5°C)
Internal FUSE	150A
Recommended External Fuse	125A
USB Output	USB-C 21W. USB-A 2.1A
IDEAL BATTERY SIZE	75Ah and above
MINIMUM BATTERY SIZE	55Ah
RUN TIME WITH 500W ON 25Ah BATTERY	30 minutes
RUN TIME WITH 100W GLOBE ON 25Ah BATTERY	5.5 hours
APPROVALS	Electrical Safety, EMC
